KWC ZOE

Trim kit - Lever mixer - Tub

20.204.500.000

124015 - 20.204.500.000 - ZOE - ZOE Trim kit - Lever mixer - Tub

KWC ZOE

Trim kit - Lever mixer - Tub

20.204.500.000 124015

* Trim kit with function unit
* Outflow top and below
* Turning handle for diverter
* KWC cartridge M 35 H
- with ceramic discs
- flow rate and temperature continuously variable
* Scope of delivery:
- Function unit, lever, cap, sleeve, cover plate, holder for escutcheon, diverter
- Fastening of the cover plate without screws
* To be ordered separately:
- Unit for concealed installation KWC BLUEBOX®
½", without shut-off valve, 39.999.900.931
¾" (½"), with shut-off valve, 39.999.910.931
Trim kit Trim kit, with vacuum breaker

Product Specifications

Flow rate
19 l/min (3 bar)

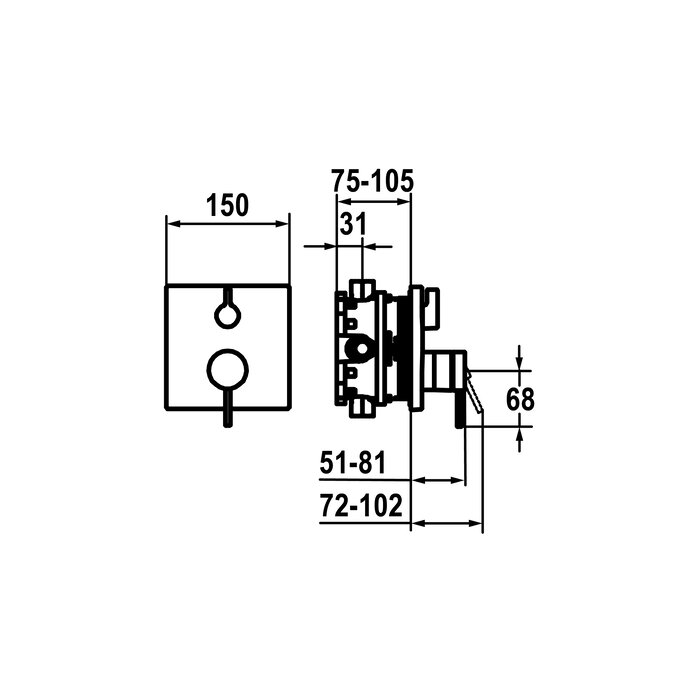

Diameter
150 x 150
Handling
front lever
Color code
chrome
Installation_type
Wall mounted
Faucet_typ
Lever mixer
G_Acoustic group
I
Concealed_unit
Trim kit
Energy Label
C
material
Brass

Downloads

Technical Documents

With our proven Technologies and functions

Accessories

KWC BLUEBOX

Alignment set

Z.537.593

KWC BLUEBOX

Excutcheon extension

Z.537.594

KWC BLUEBOX

Extension set 15 mm

Z.537.595

KWC BLUEBOX

Reverse adapter

Z.537.953

KWC

Cartridge M 35 H

Z.537.582
