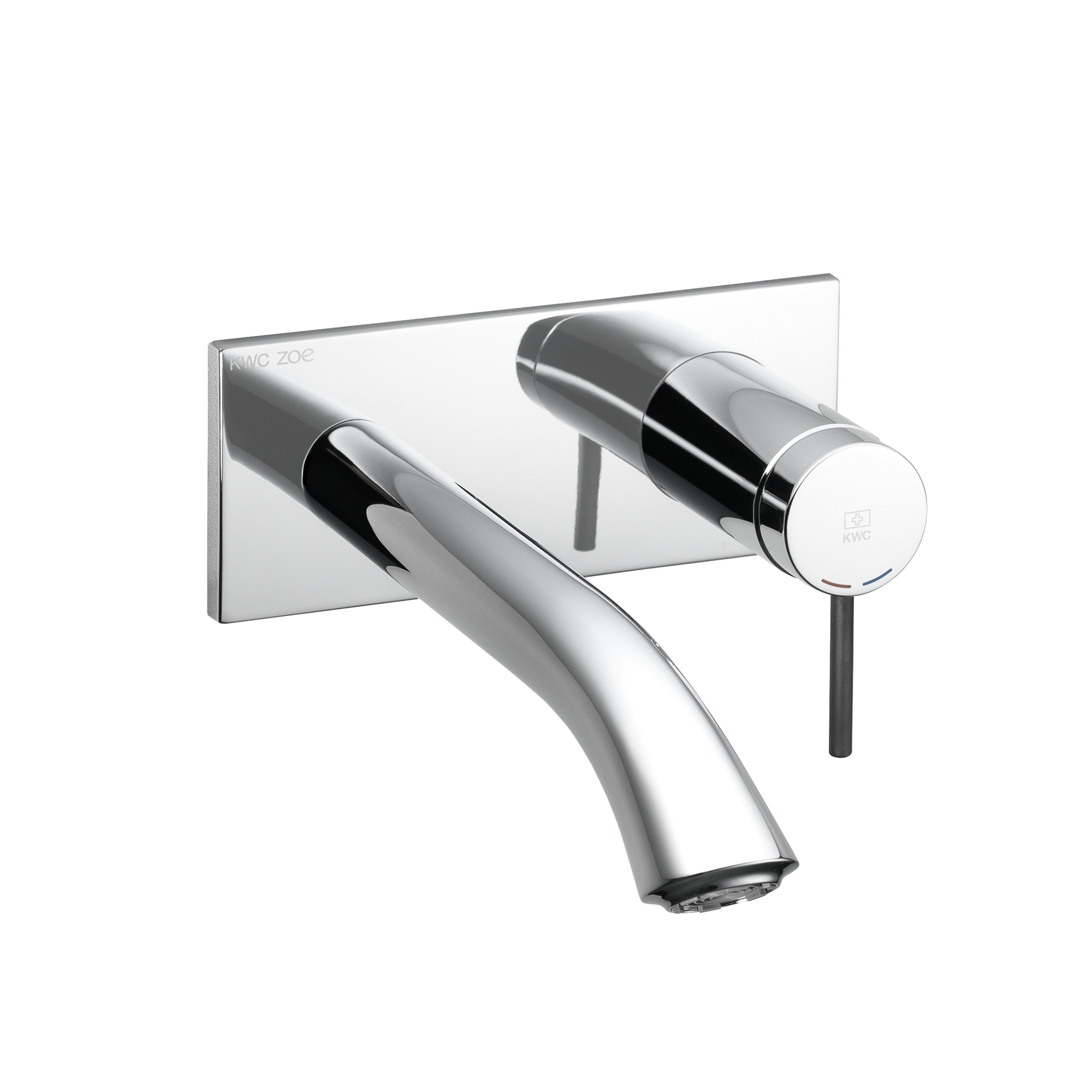

KWC ZOE

Trim kit - Lever mixer - Basin

11.202.034.000

123335 - 11.202.034.000 - ZOE - ZOE Trim kit - Lever mixer - Basin

KWC ZOE

Trim kit - Lever mixer - Basin

11.202.034.000 123335

* Trim kit Lever mixer
* Fixed spout
- Neoperl® Caché®
* OptimalSpace - ample space for washing or working
* KWC cartridge S 25
- with ceramic discs
- flow rate and temperature continuously variable
* To be ordered separately:
- Unit for concealed installation ½" 39.193.400.931
* To be ordered separately (optional or if necessary):
- Extension set 20 mm Z.536.333

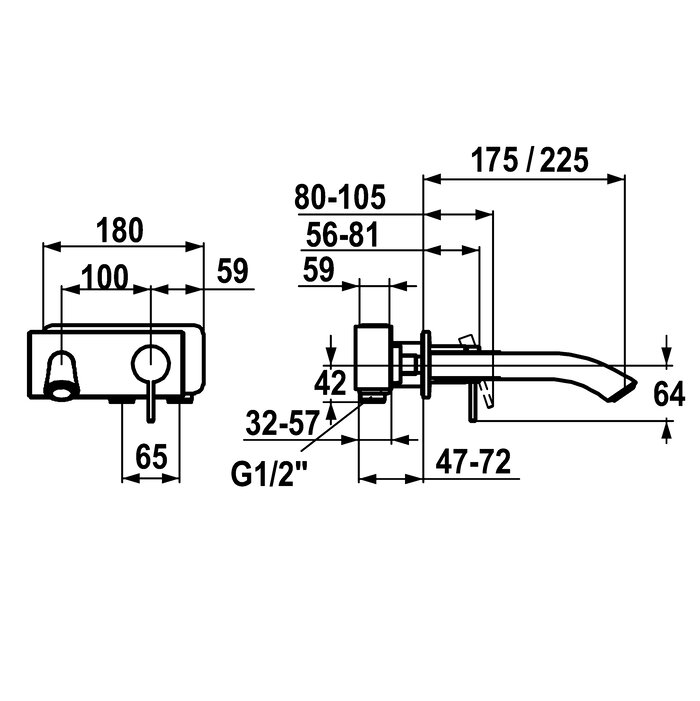

A 225 A 175

Product Specifications

Flow rate
5 l/min (3 bar)
Spout
fixed
Diameter
173 x 74
Handling
front lever
Color code
chrome
Installation_type
Wall mounted
Faucet_typ
Lever mixer
G_Acoustic group
I
Concealed_unit
Trim kit
Projection_A
A 225
Energy Label
B
Dimension Water outlet
30
material
Brass

Downloads

Technical Documents

With our proven Technologies and functions

Accessories

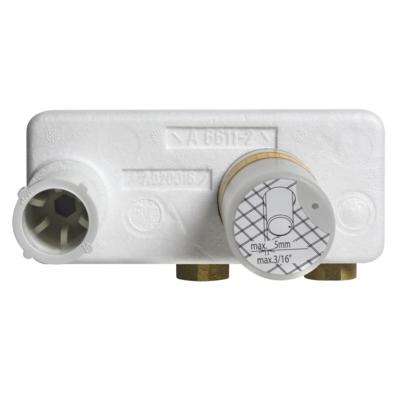

KWC ZOE

Concealed unit

39.193.400.931

KWC

Cartridge S 25

Z.536.032

KWC

Service key Neoperl © Caché ©, STD, 24 mm, grey

Z.635.231

KWC ZOE Iconic from every angle

A tap to meet the highest design standards. Timeless elegance in exceptional architecture
