KWC ZOE

Trim kit - lever mixer - Basin

11.202.033.000

123339 - 11.202.033.000 - ZOE - ZOE Trim kit - lever mixer - basin

KWC ZOE

Trim kit - lever mixer - Basin

11.202.033.000 123339 EAN/GTIN: 7612158463205

* Trim kit lever mixer
* Fixed spout
- Neoperl® Caché®
* OptimalSpace - ample space for washing or working
* KWC cartridge S 25
- with ceramic discs
- flow rate and temperature continuously variable
* To be ordered separately:
- Unit for concealed installation ½" 39.193.400.931
* To be ordered separately (optional):
- KWC pop-up valve Push Open 2 in 1 Z.540.049.000

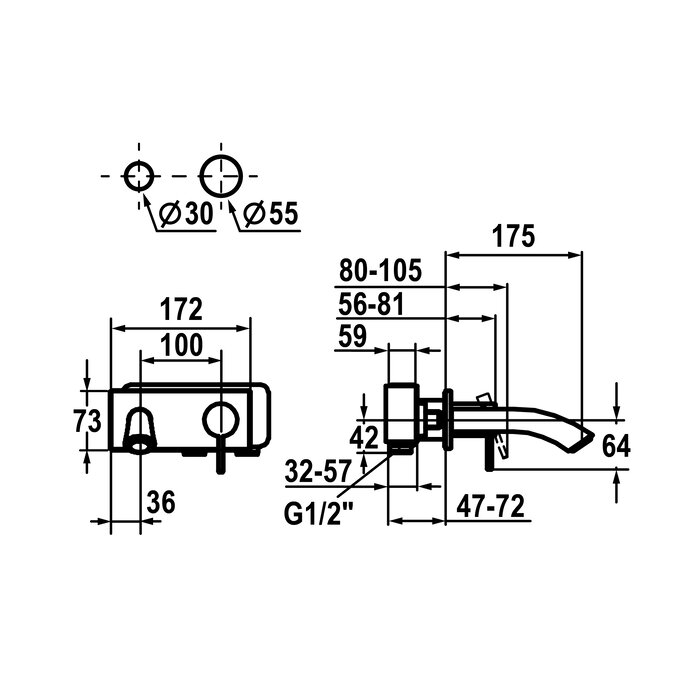

175 mm 225 mm

Product Specifications

Spout
Fixed
Color code
chromeline
Installation_type
Wall-mounted
Article type
Lever mixer
Concealed unit
Trim set
material
Brass
Projection A
175 mm
Maximum height
74 mm
Width maximum
173 mm
BEDIENPOSITION
Front lever
BEDIENUNG
MANUELL
Acoustic group
I
Energy Label (CH)
A
Flow rate
4.7 l/min (3 bar)

Downloads

Product images

Technical Documents

With our proven Technologies and functions

Accessories

KWC

Concealed unit

39.193.400.931

KWC

Elongation kit

Z.536.333

KWC

Mounting kit

Z.536.828

KWC

Pop-up valve Push Open

Z.540.049.000

KWC

Cartridge S 25

Z.536.032

KWC

Service key Neoperl © Caché ©, STD, 24 mm, grey

Z.635.231

KWC ZOE Iconic from every angle

A tap to meet the highest design standards. Timeless elegance in exceptional architecture
