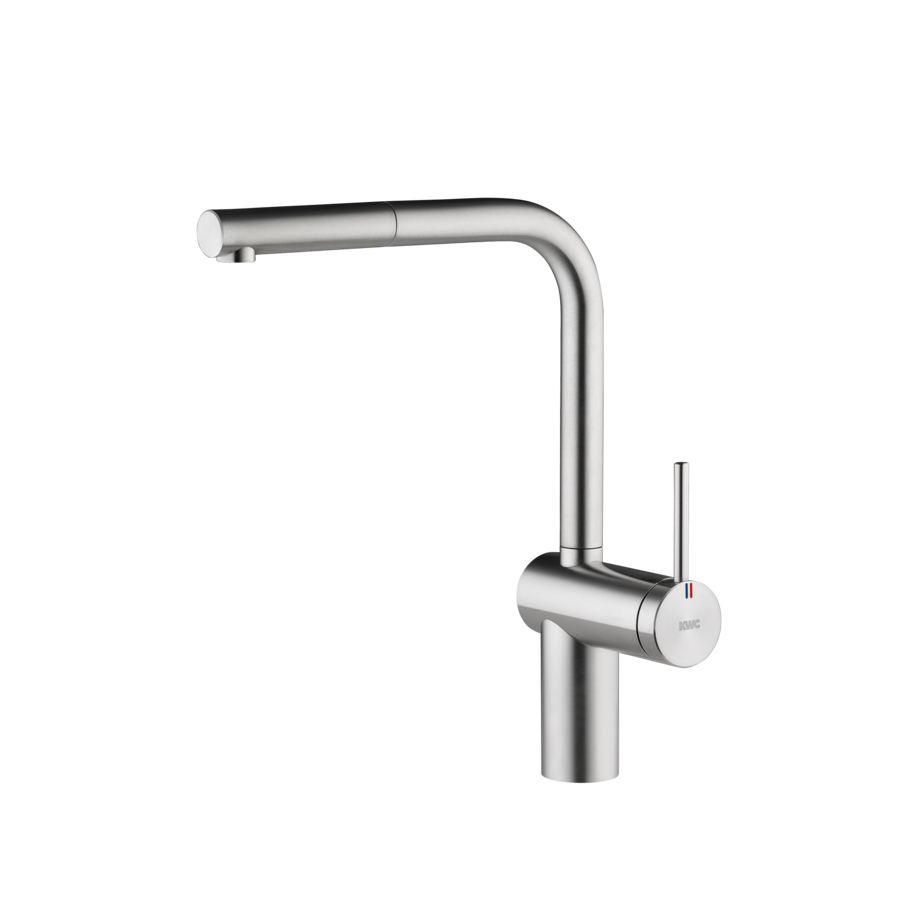

KWC LIVELLO

Lever mixer - kitchen

10.231.103.700FL

122296 - 10.231.103.700FL - LIVELLO - LIVELLO Lever mixer - kitchen

KWC LIVELLO

Lever mixer - kitchen

10.231.103.700FL 122296 EAN/GTIN: 7612158413002

* Lever mixer
* Lever installation only possible on the right side
- Child safety: cold water flow in lever position towards the front
* gap between wall and centre of mounting hole min. 65 mm
* TouchProtect - anti-scald protection thanks to the “double skin” principle
* Pull-out aerator
- Neoperl® Caché®
- up to 600 mm pull-out length
- hose surface to fit faucet surface
* Hose guide, swivelling 360°
* EasyLock - a pull-out spray that easily slides back into place
* OptimalSpace - ample space for washing or working
* KWC cartridge M 35 H
- with ceramic discs
- flow rate and temperature continuously variable
* Flexible connection hoses 3/8"
* Fastening by means of threaded sleeve M33 x 1.5
* Mounting hole size ø35 mm

Product Specifications

Connection
Flexible connection hoses ⅜"
Spout
swivel
Kitchen_spray
Pull-out spout
Color code
stainless steel
Installation_type
Pillar installation
Article type
Lever mixer
Design
L-spout
material
stainless steel
Number of tap holes
For 1 tap hole
Number of jets
1 stream
Projection A
225 mm
Swivel range standard
360 Degree
Maximum height
326 mm
Minimum water outlet
298 mm
Diameter
44 mm
Operating position
Side lever
Handling
Manually
Acoustic group
II
Energy Label (CH)
B
Flow rate
11 l/min (3 bar)
