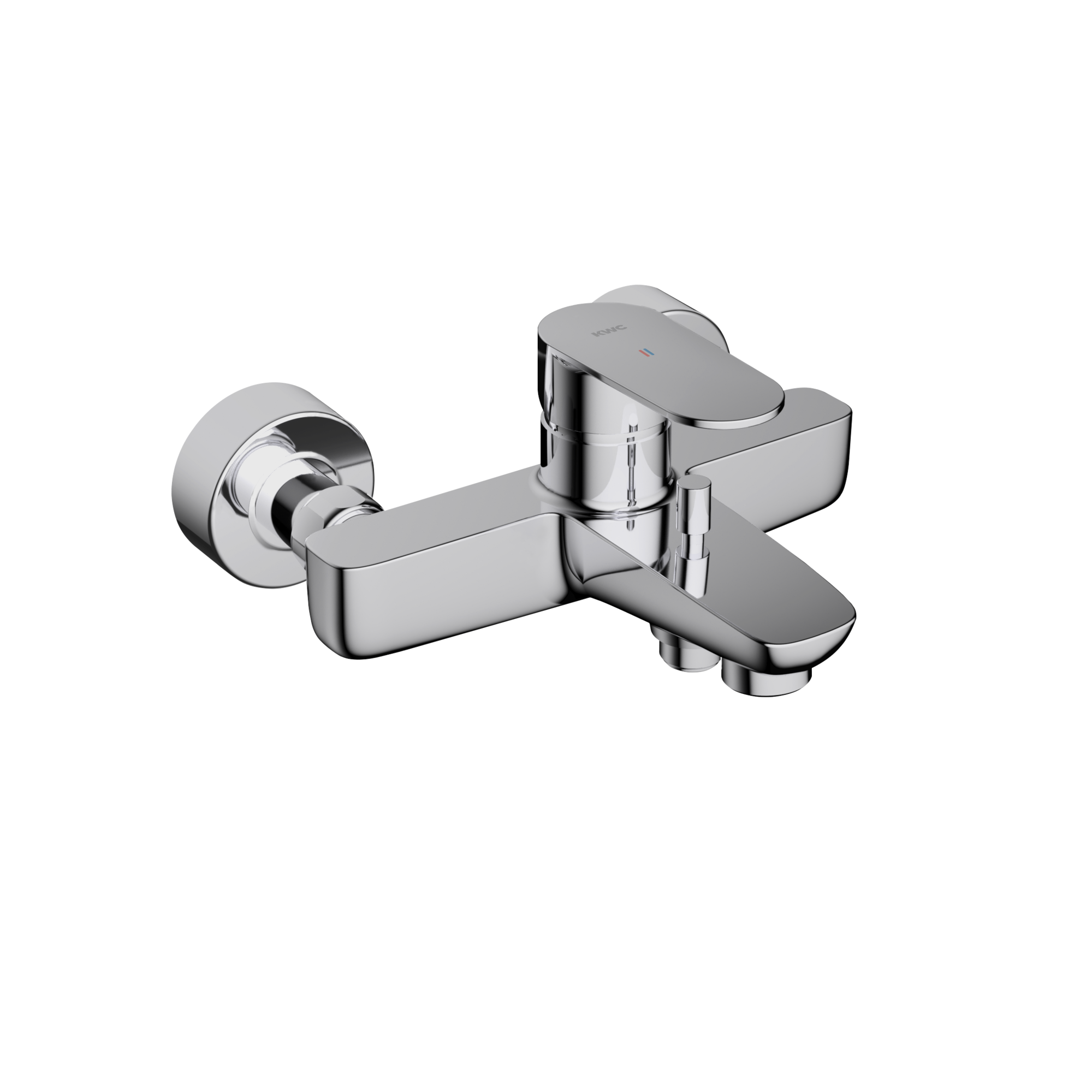

KWC ELLA

Lever mixer - tub

20.382.333.000

124362 - 20.382.333.000 - ELLA - ELLA Lever mixer - tub

KWC ELLA

Lever mixer - tub

20.382.333.000 124362 EAN/GTIN: 7612158502874

* Lever mixer
* Diverter with automatic reset
* Intrinsically safe against backflow
* Fixed spout
- Neoperl® Cascade®
* KWC cartridge M 35 H
- with ceramic discs
- flow rate and temperature continuously variable
- temperature limitation
* Wall connections ½" x ¾", without shut-off valve eccentric 10 mm

Product Specifications

A_Spout_Spray
20 l/min (3 bar)
A_Shower outlet
15 l/min (3 bar)
Spout
fixe
Shower_set
OHNE_BRAUSE,_SCHLAUCH,_HALTER
Handling
top lever
Color_code
chromeline
Installation_type
Wall mounted
Article type
Lever mixer
Measure_Height
71
G_Acoustic group
II
G_Acoustic group_Shower_outlet
I

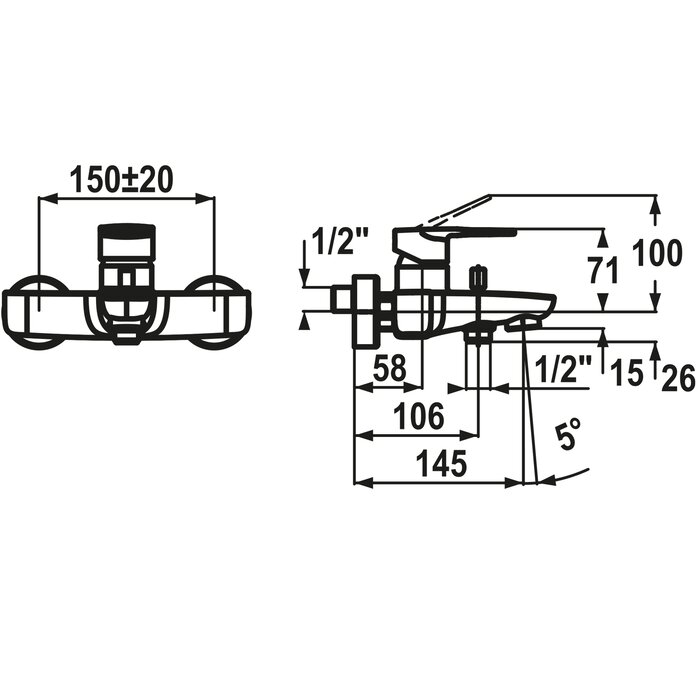

Projection_A
A 145
Connection measure
150+/-20
Dimension Water outlet
15
material
Brass

Downloads

Product images

Technical Documents

Accessories

KWC

Control cartridge M 35 H

Z.537.582
