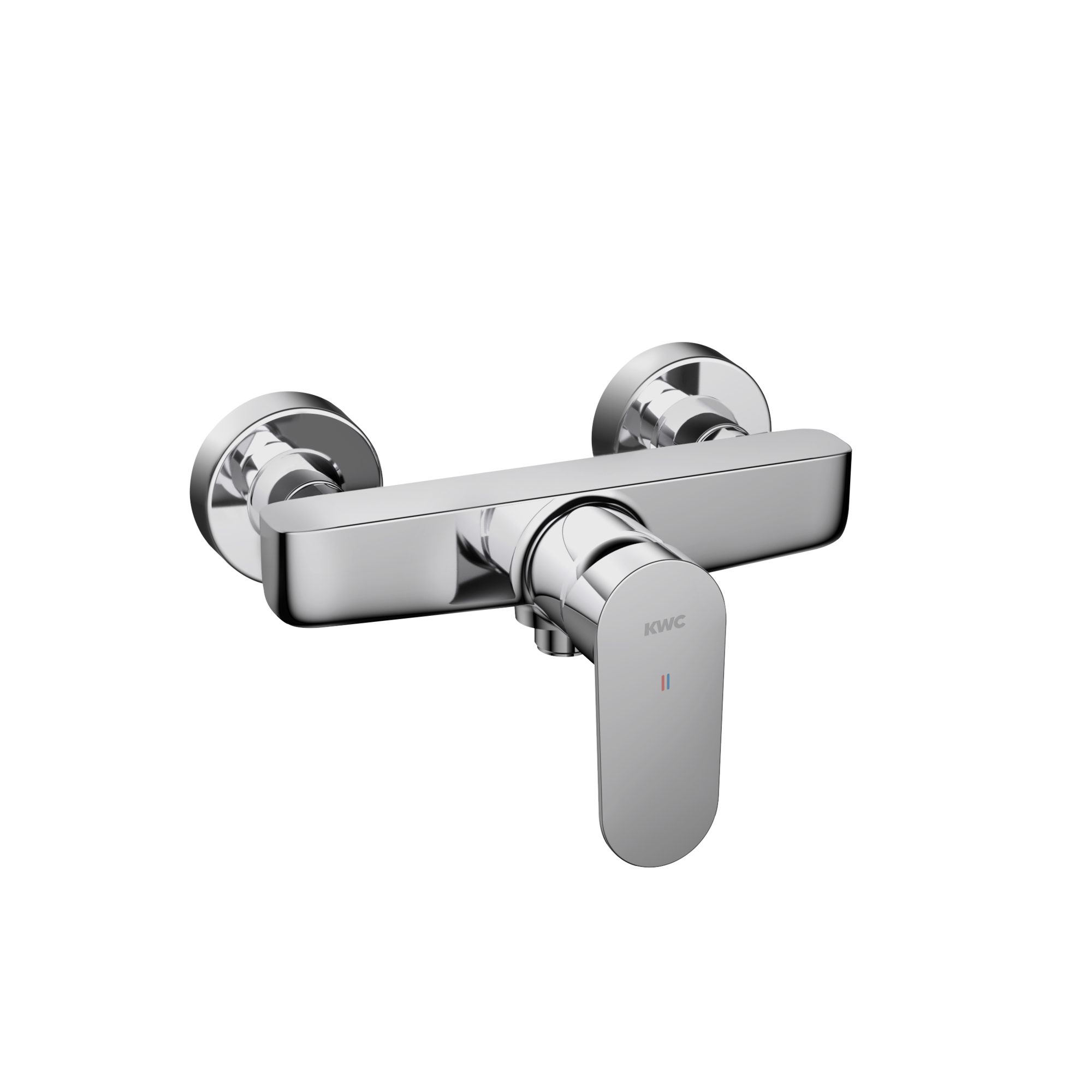

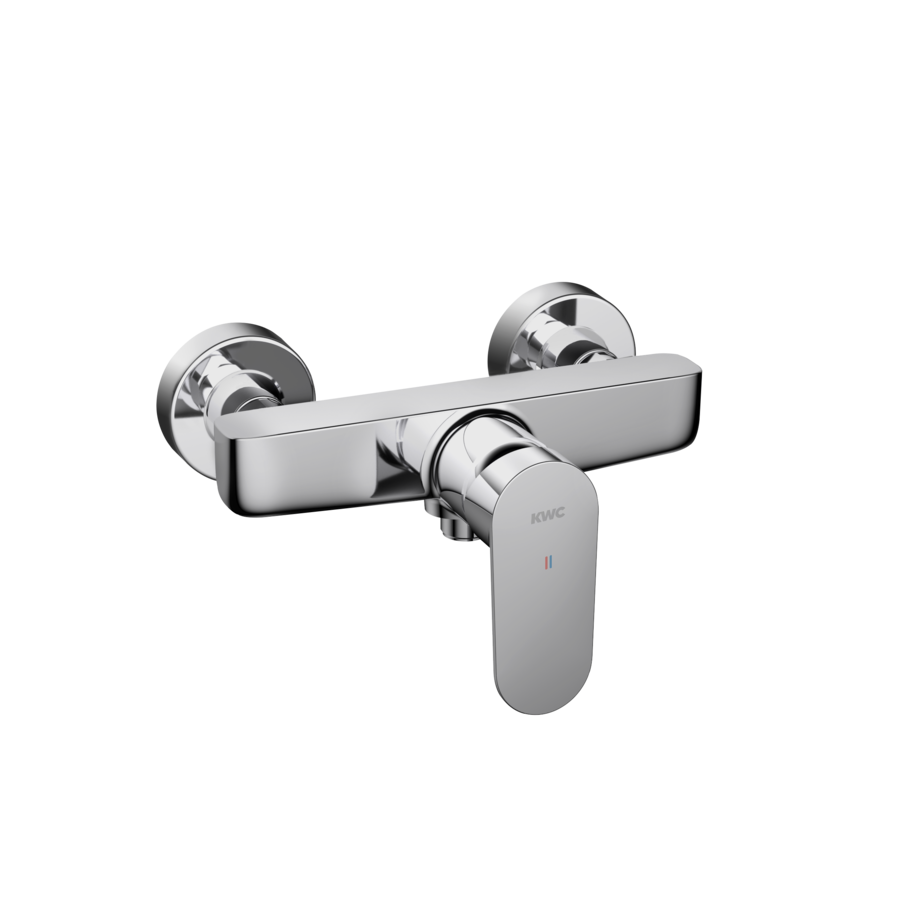

KWC ELLA

Lever mixer - shower

21.382.330.000

124359 - 21.382.330.000 - ELLA - ELLA Lever mixer - shower

KWC ELLA

Lever mixer - shower

21.382.330.000 124359 EAN/GTIN: 7612158502843

* Lever mixer
* Intrinsically safe against backflow
* KWC cartridge M 35 H
- with ceramic discs
- flow rate and temperature continuously variable
- temperature limitation
* Wall connections ½" x ¾", without shut-off valve eccentric 10 mm

Product Specifications

Shower_set
without a shower head and hose
Color code
chromeline
Installation_type
Wall-mounted
Article type
Lever mixer

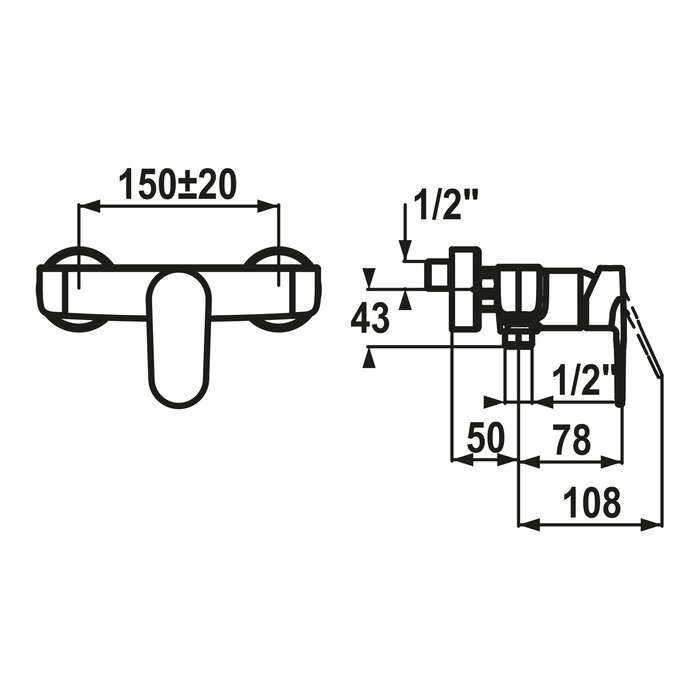

Connection measure
150+/-20
material
Brass
Maximum height
30 mm
Operating position
Front lever
Handling
Manually
Spray outlet: Flow rate
16 l/min (3 bar)
Spray outlet: Acoustic group
II

Downloads

Product images

Technical Documents

Accessories

KWC

Cartridge M 35 H

Z.537.582
