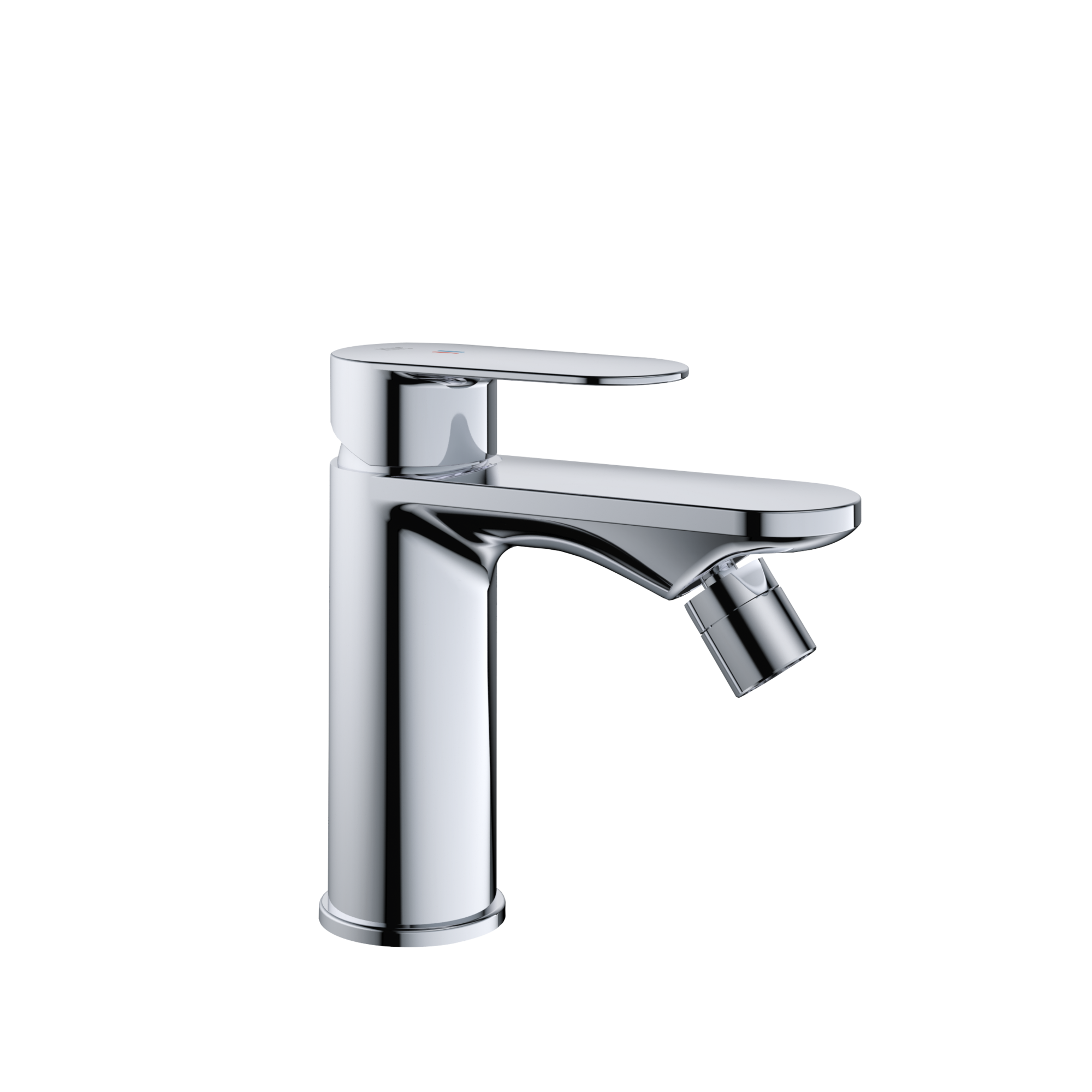

KWC ELLA

Lever mixer - bidet

13.381.041.000FL

124302 - 13.381.041.000FL - ELLA - ELLA Lever mixer - bidet

KWC ELLA

Lever mixer - bidet

13.381.041.000FL 124302 EAN/GTIN: 7612158500764

* Lever mixer
* EfficientFlow - integrated flow control
* Fixed spout
- ball joint aerator Neoperl® Cascade®
* KWC cartridge M 35 OP
- with ceramic discs
- flow rate and temperature continuously variable
- temperature limitation
* Flexible connection hoses 3/8"
* Fastening by means of threaded sleeve M33 x 1.5
* Mounting hole size ø35 mm

Product Specifications

Waste valve
with pop-up valve
Connection
Flexible connection hoses ⅜"
Spout
Fixed
Color code
chromeline
Installation_type
Pillar installation
Article type
Lever mixer
material
Brass

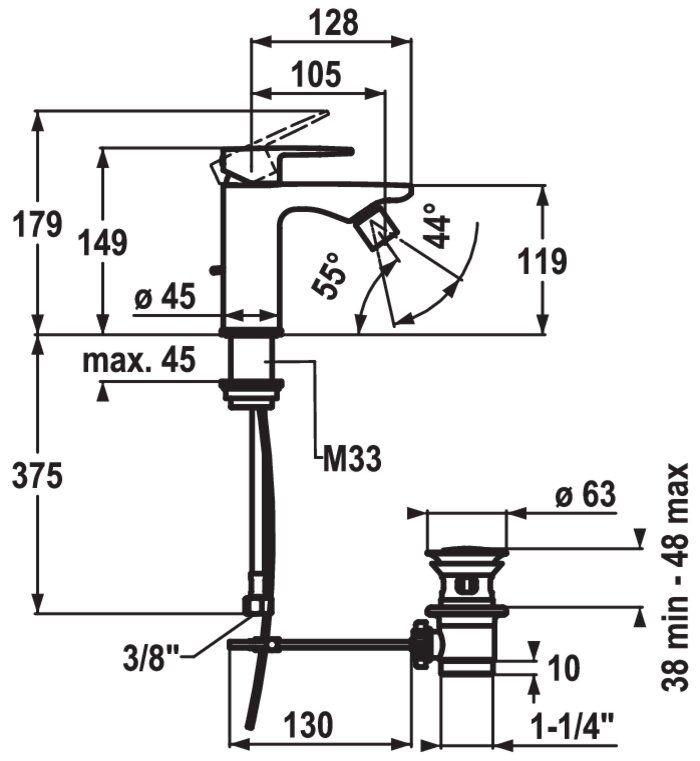

Projection A
105 mm
Maximum height
149 mm
Minimum water outlet
80 mm
BEDIENPOSITION
Top lever
BEDIENUNG
MANUELL
Acoustic group
I
Energy Label (CH)
A
Flow rate
4.5 l/min (3 bar)

Downloads

Product images

Technical Documents

With our proven Technologies and functions

Accessories

KWC

Cartridge M 35 OP

Z.537.710

KWC

Service key Neoperl © Caché ©, TJ, 18 mm, green

Z.634.729
