KWC ELLA

Trim kit - Lever mixer - Basin

11.382.033.000

124290 - 11.382.033.000 - ELLA - ELLA Trim kit - Lever mixer - Basin

KWC ELLA

Trim kit - Lever mixer - Basin

11.382.033.000 124290

* Trim kit Lever mixer
* Fixed spout
- Neoperl® Perlator® Shorty
* OptimalSpace - ample space for washing or working
* KWC cartridge M 35 H
- with ceramic discs
- flow rate and temperature continuously variable
* To be ordered separately:
- Unit for concealed installation ½" 39.001.401.931
* To be ordered separately (optional or if necessary):
- Extension set 20 mm Z.536.333

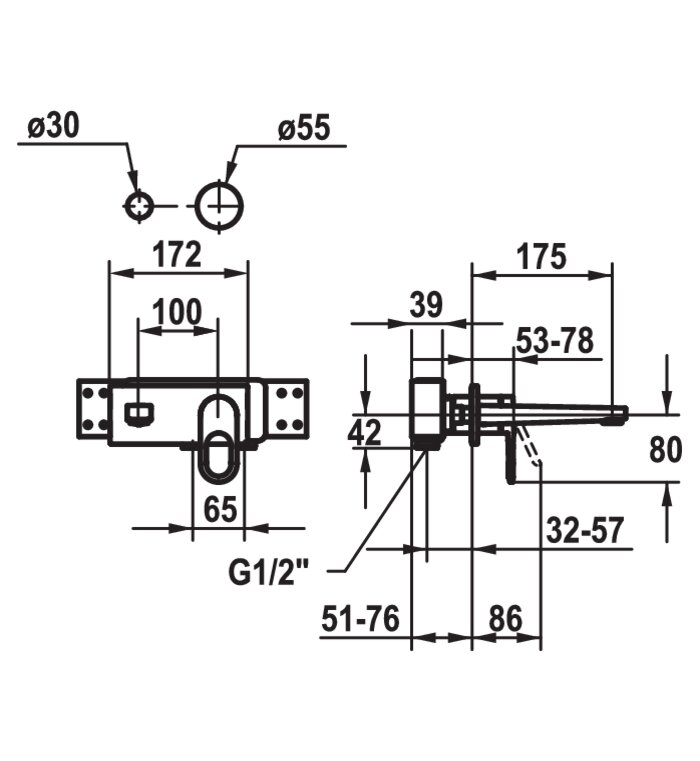

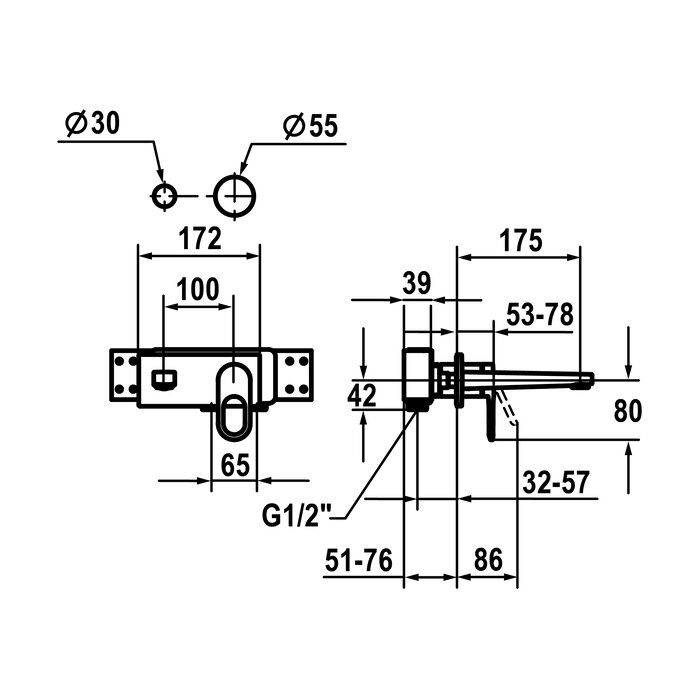

A 175 A 225

Product Specifications

Flow rate
5 l/min (3 bar)
Spout
fixed
Diameter
173 x 74
Handling
front lever
Color code
chrome
Installation_type
Wall mounted
Faucet_typ
Lever mixer
G_Acoustic group
I
Concealed_unit
Trim kit
Projection_A
A 175
Energy Label
B
material
Brass
