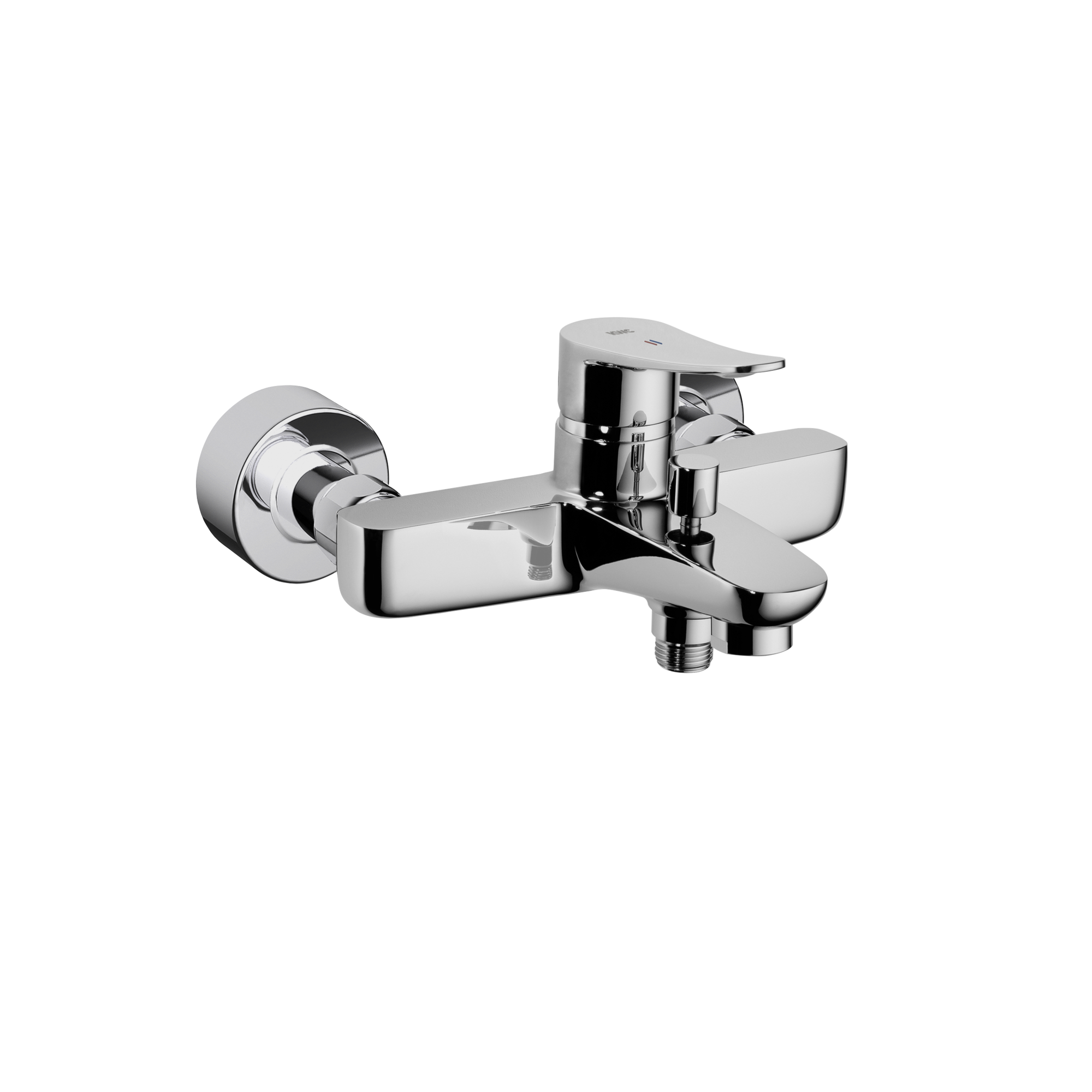

KWC ACTIVO

Lever mixer - tub

20.402.332.000

124432 - 20.402.332.000 - ACTIVO - ACTIVO Lever mixer - tub

KWC ACTIVO

Lever mixer - tub

20.402.332.000 124432 EAN/GTIN: 7612158503451

* Lever mixer
* ergonomically shaped operating lever
* Diverter with automatic reset
* Intrinsically safe against backflow
* Fixed spout
- Neoperl® Perlator®
* KWC cartridge M 35 H
- with ceramic discs
- flow rate and temperature continuously variable
* Wall connections ½" x ¾", without shut-off valve eccentric 10 mm

Product Specifications

A_Spout_Spray
20 l/min (3 bar)
A_Shower outlet
16.5 l/min (3 bar)
Spout
fixe
Shower_set
OHNE_BRAUSE,_SCHLAUCH,_HALTER
Handling
top lever
Color_code
chromeline
Installation_type
Wall mounted
Article type
Lever mixer

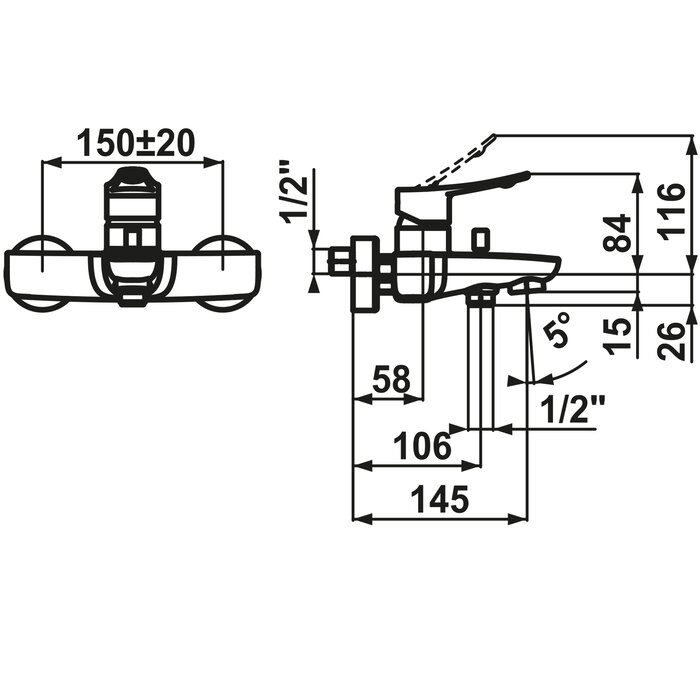

Measure_Height
84
G_Acoustic group
U
G_Acoustic group_Shower_outlet
II
Projection_A
A 165
Connection measure
150+/-15
Dimension Water outlet
15
material
Brass

Downloads

Product images

Technical Documents

Accessories

KWC

Control cartridge M 35 H

Z.537.582
