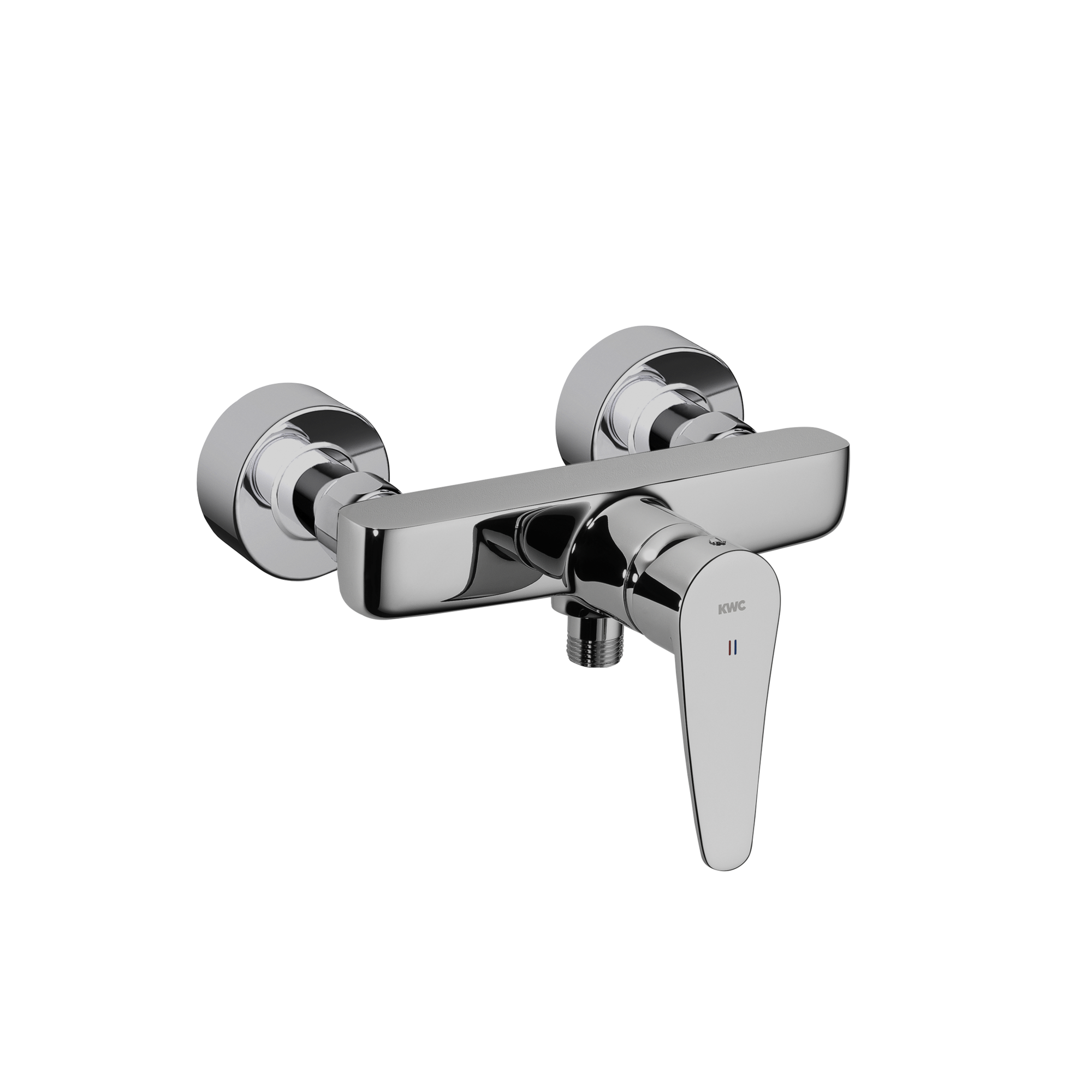

KWC ACTIVO

Lever mixer - shower

21.402.330.000

124425 - 21.402.330.000 - ACTIVO - ACTIVO Lever mixer - shower

KWC ACTIVO

Lever mixer - shower

21.402.330.000 124425 EAN/GTIN: 7612158503383

* Lever mixer
* ergonomically shaped operating lever
* Intrinsically safe against backflow
* KWC cartridge M 35 H
- with ceramic discs
- flow rate and temperature continuously variable
* Wall connections ½" x ¾", without shut-off valve eccentric 10 mm

Product Specifications

Shower_set
without a shower head and hose
Color code
chromeline
Installation_type
Wall-mounted
Article type
Lever mixer

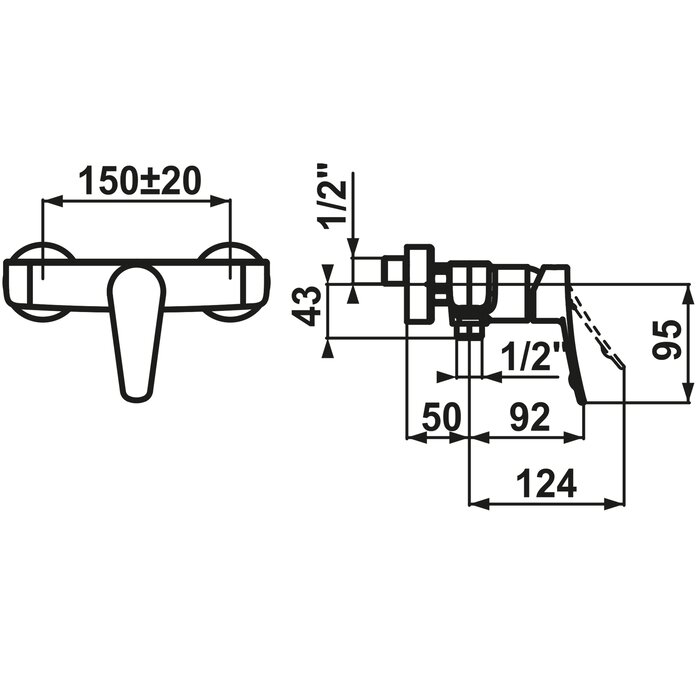

Connection measure
150+/-20
material
Brass
Maximum height
63 mm
BEDIENPOSITION
Front lever
BEDIENUNG
MANUELL
Spray outlet: Flow rate
16 l/min (3 bar)
Spray outlet: Acoustic group
II

Downloads

Product images

Technical Documents

Accessories

KWC

Cartridge M 35 H

Z.537.582
