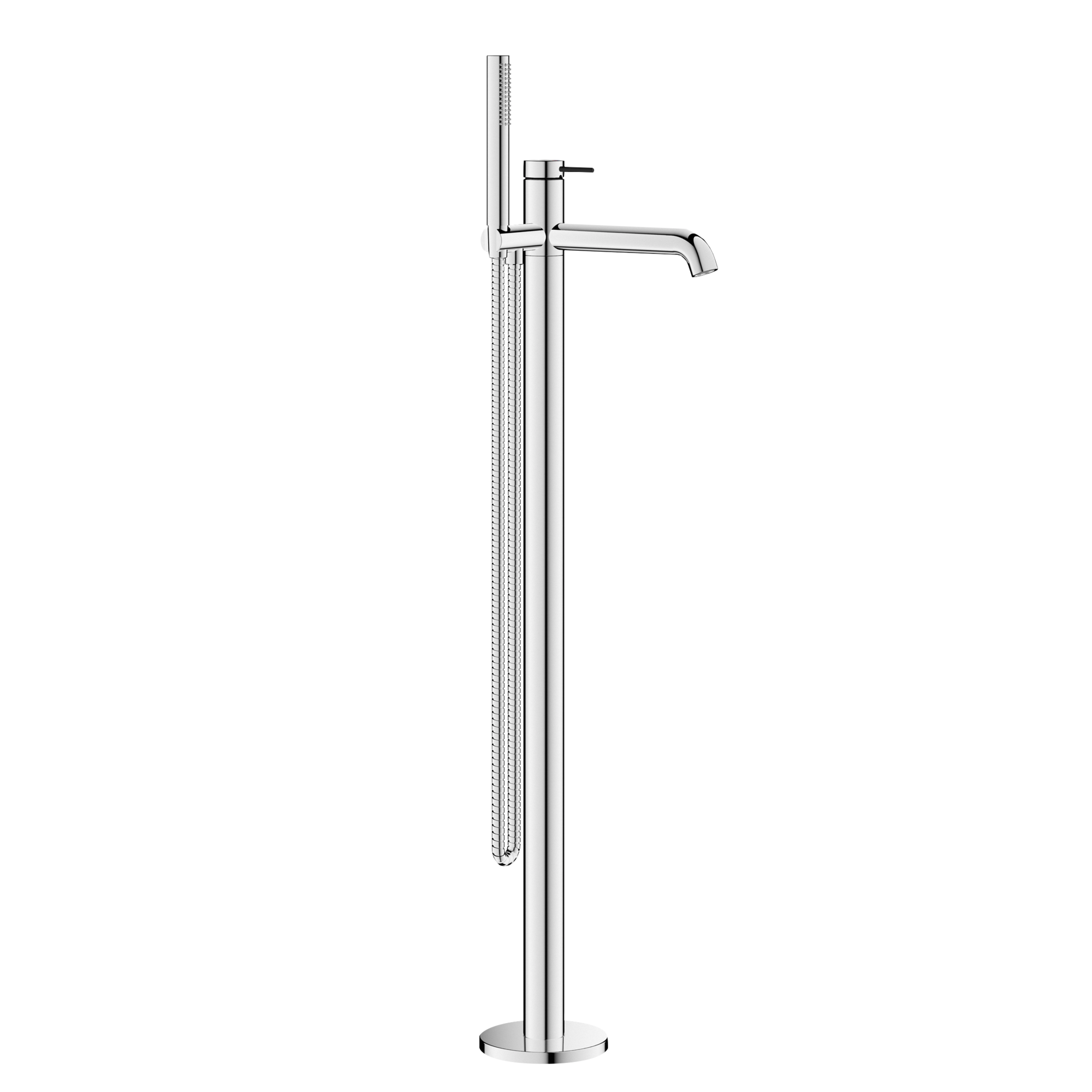

KWC ZOE

Lever mixer - Tub

20.201.093.000

124794 - 20.201.093.000 - ZOE - ZOE Lever mixer - Tub

KWC ZOE

Lever mixer - Tub

20.201.093.000 124794

* Lever mixer
* For freestanding tub
* Integrated check valve in the hose outlet
* with shower holder
* Fixed spout
- Neoperl® SLIM®
* KWC cartridge M 35 OP
- with ceramic discs
- flow rate and temperature continuously variable
- temperature limitation
* Scope of delivery:
- Hand shower KWC FIT-X slim 26.000.103.000
- Shower hose 1500 mm, metal Z.538.415.000
* To be ordered separately:
- Unit for concealed installation 39.000.602.931

Product Specifications

Flow rate
21 l/min (3 bar)
Spray outlet: Flow rate
12 l/min (3bar)
Spout
fixed
Shower_set
with shower head, hose
Handling
top lever
Color code
chrome
Installation_type
Freestanding
Faucet_typ
Basin1

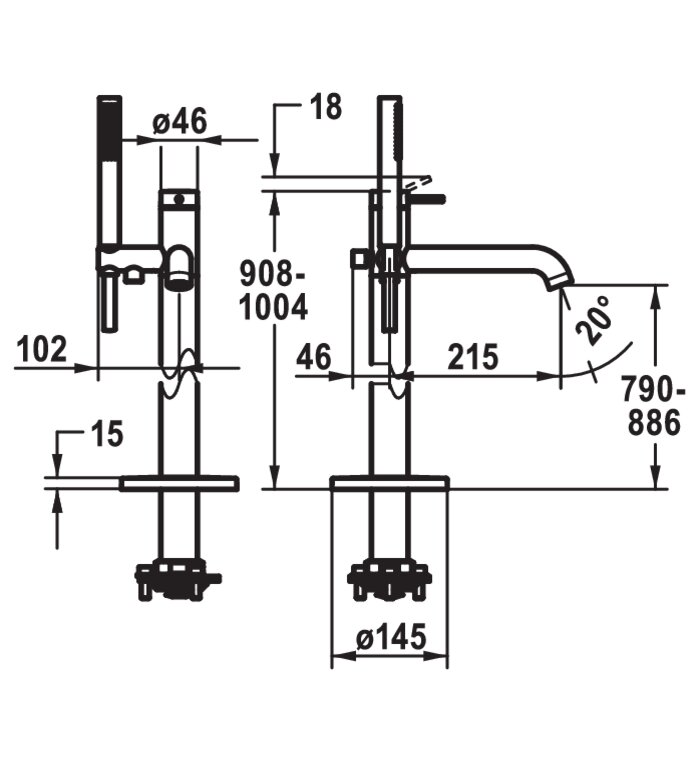

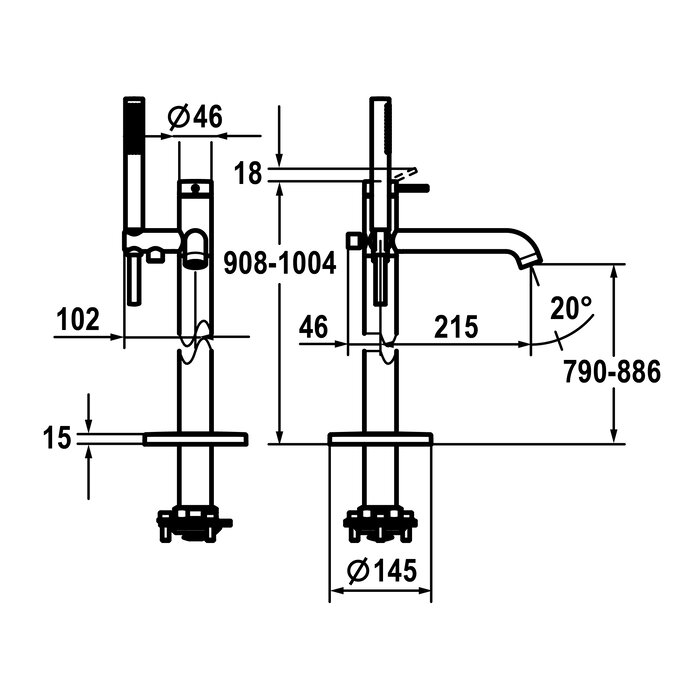

Dimension Height
908-1004
Acoustic group
Mains receiver1
Spray outlet: Acoustic group
Battery1
Projection_A
A 215
Energy Label
B
Dimension Water outlet
790-886
material
Brass

Downloads

Technical Documents

With our proven Technologies and functions

Accessories

KWC

Cartridge M 35 OP

Z.537.710

KWC

Service key Neoperl © Caché ©, STD, 24 mm, grey

Z.635.231
