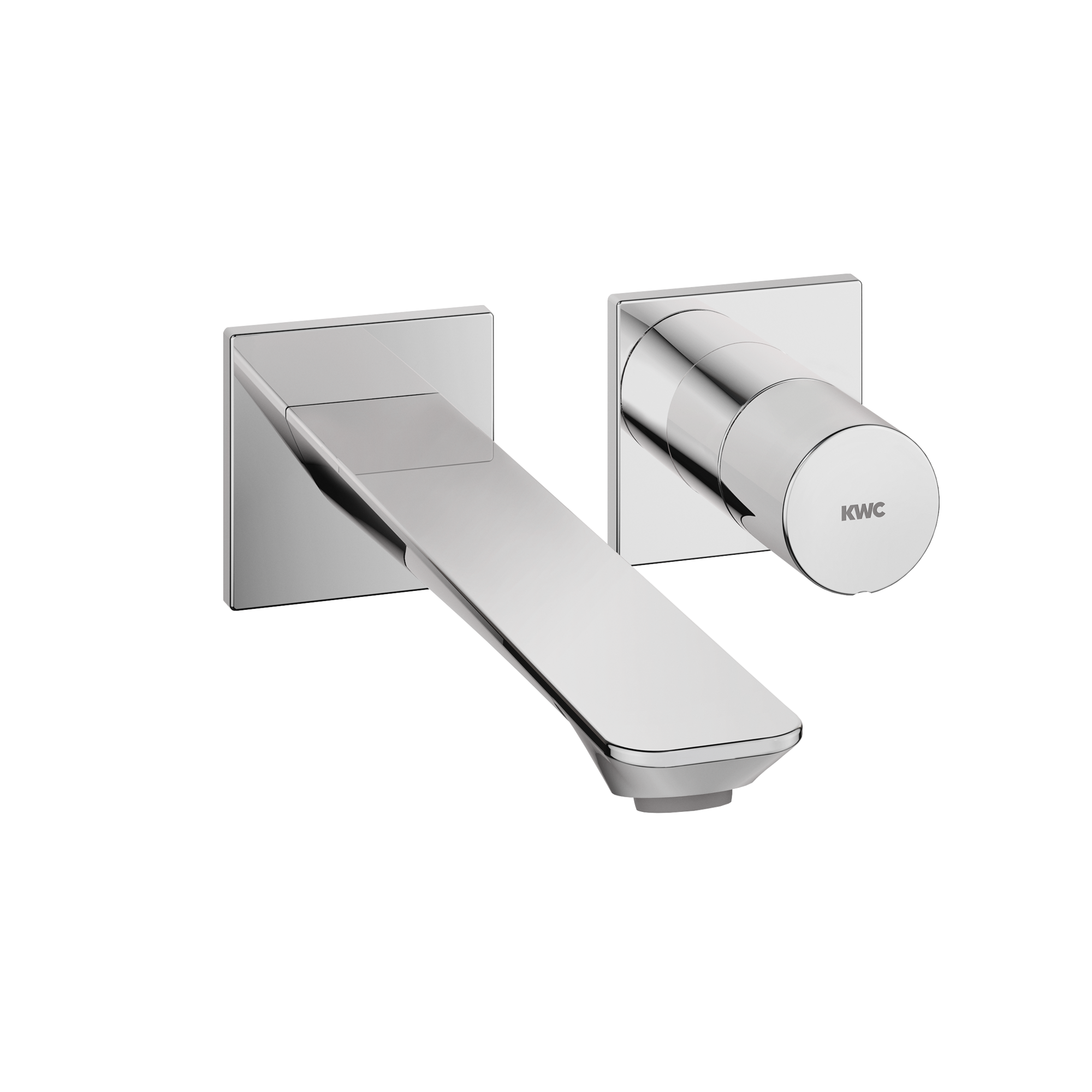

KWC ORA

Trim kit - lever mixer - Basin

11.492.064.000

125492 - 11.492.064.000 - ORA - ORA Trim kit - lever mixer - basin

KWC ORA

Trim kit - lever mixer - Basin

11.492.064.000 125492 EAN/GTIN: 7612158540333

* Trim kit Lever mixer
* Fixed spout
- Neoperl® Perlator® SSR, swivelling jet regulator
* OptimalSpace - ample space for washing or working
* KWC cartridge M 35 H
- with ceramic discs
- flow rate and temperature continuously variable
* To be ordered separately:
- Unit for concealed installation ½" 39.001.402.000
* To be ordered separately (optional or if necessary):
- Extension set 20 mm Z.536.333
chromeline

Product Specifications

A_Spout_Spray
4.7 l/min (3 bar)
Connection
G 1/2"
Spout
fixe
Diameter
168 x 68
Handling
front lever
Color_code
chromeline
Installation_type
Wall mounted
Faucet_typ
Lever mixer
G_Acoustic group
I
Concealed_unit
Trim kit
Projection_A
A 225
Energy Label (CH)
A
Connection measure
Range CH curent
material
Brass

Downloads

Product images

Technical Documents

With our proven Technologies and functions

Accessories

KWC

Concealed unit

39.001.402.000

KWC

Control cartridge M 35 H

Z.537.582

KWC

Service key Neoperl © Caché ©, JR, 21 mm, red

Z.635.215
