KWC ELLA

Lever mixer - tub

20.382.483.000

124308 - 20.382.483.000 - ELLA - ELLA Lever mixer - tub

KWC ELLA

Lever mixer - tub

20.382.483.000 124308 EAN/GTIN: 7612158500825

* Lever mixer
* TouchProtect - anti-scald protection thanks to the “double skin” principle
* Turning handle for diverter
* Intrinsically safe against backflow
* Fixed spout
- Neoperl® Cascade®
* KWC cartridge M 35-S HF
- with ceramic discs
- flow rate and temperature continuously variable
- temperature limitation
* Concealed wall connections ½" x ¾", without shut-off valve L 46 eccentric 7.5 mm

Product Specifications

Spout
Fixed
Shower_set
without a shower head, hose and holder
Color code
chromeline
Installation_type
Wall-mounted
Article type
Lever mixer

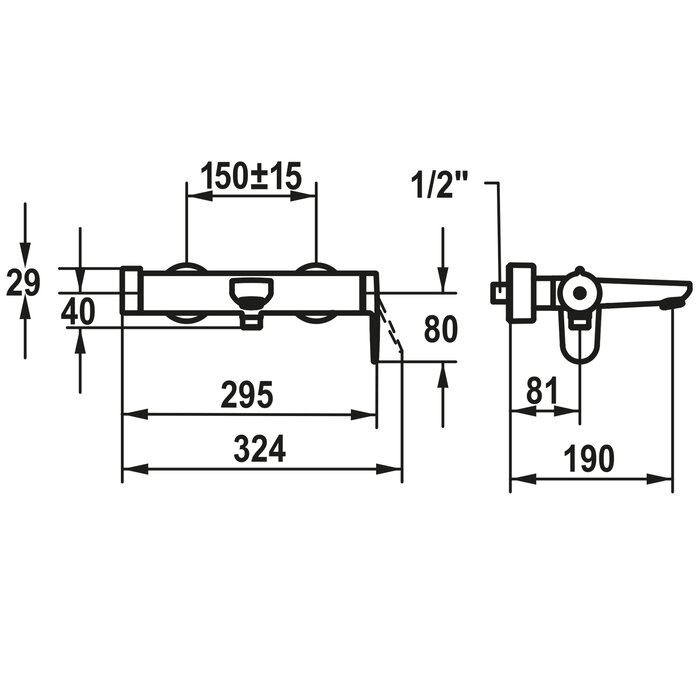

Connection measure
150+/-15
material
Brass
Projection A
190 mm
Maximum height
30 mm
Operating position
Side lever
Handling
Manually
Acoustic group
II
Spray outlet: Flow rate
12 l/min (3 bar)
Spray outlet: Acoustic group
I
Flow rate
20 l/min (3 bar)

Downloads

Product images

Technical Documents

Accessories

KWC

Cartridge M 35-S HF

Z.537.602
