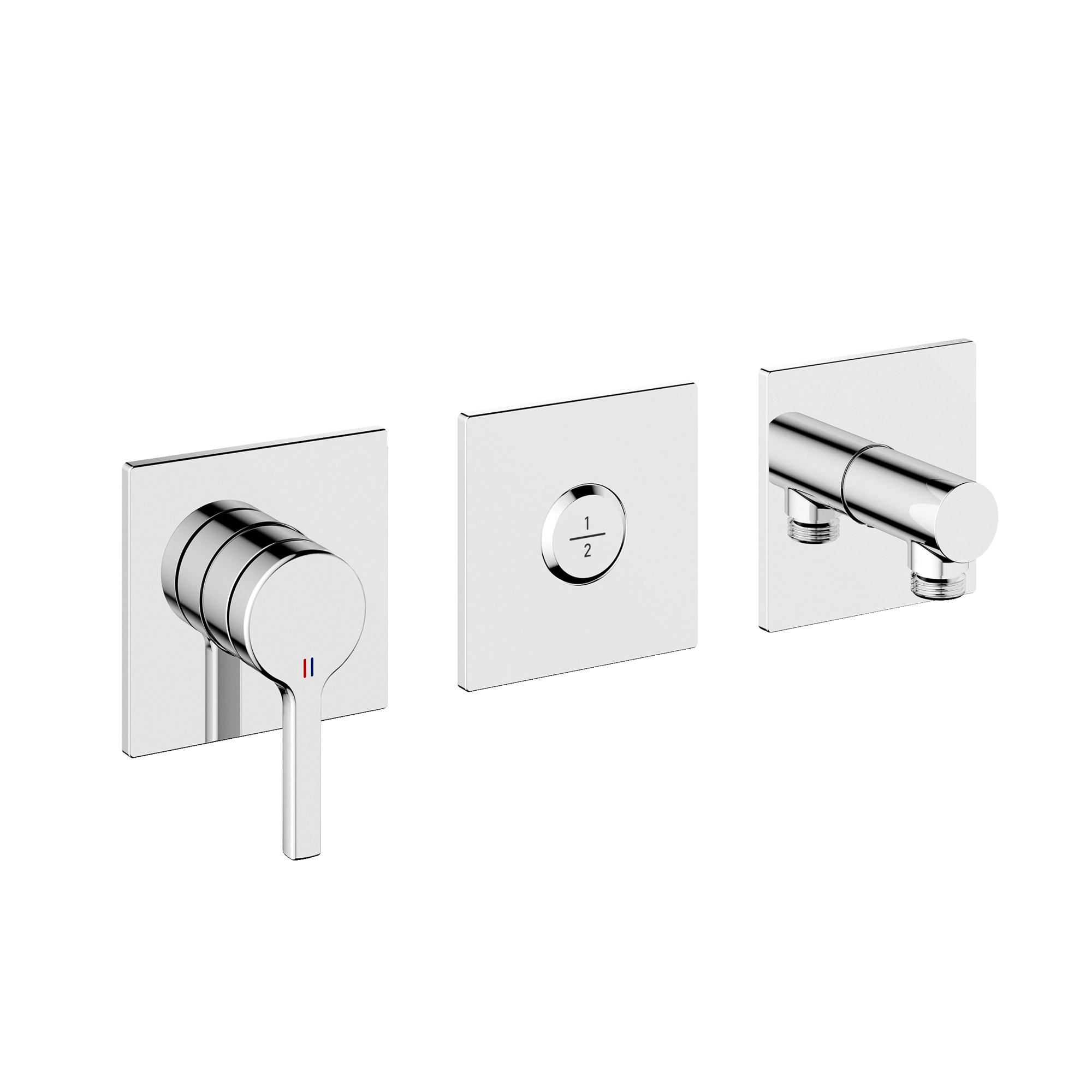

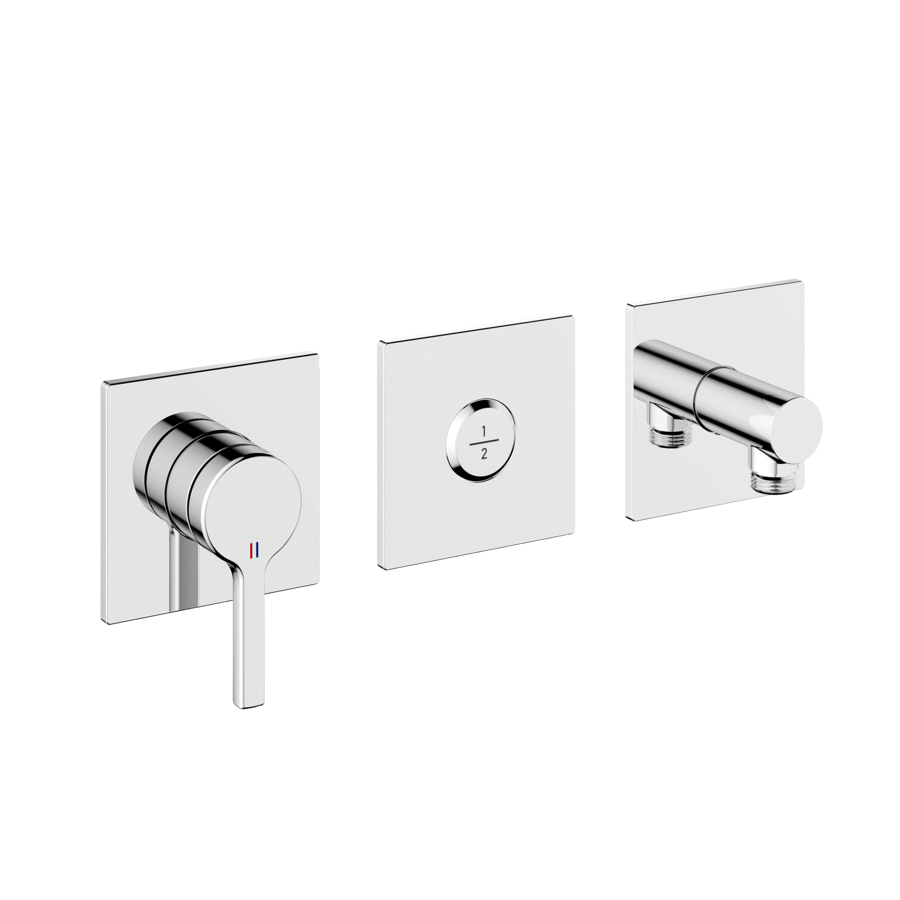

KWC AVA 2.0

Trim kit, with safety device DIN EN 1717 – Lever mixer – Tub

20.464.550.000

125293 - 20.464.550.000 - AVA 2.0 - Trim kit, with safety device DIN EN 1717 – Lever mixer – Tub

KWC AVA 2.0

Trim kit, with safety device DIN EN 1717 – Lever mixer – Tub

20.464.550.000 125293

* Trim kit with function unit KWC HOMEBOX
* Outflow
- with integrated hose connection
- above or below for the second consumer with CHOICE diverter without automatic reset
* KWC cartridge M 35-S HF
- with ceramic discs
- flow rate and temperature continuously variable
* Scope of delivery:
- Lever mixer unit
- Diverter unit
- Hose connection unit
- Fastening of the cover plate without screws
* To be ordered separately:
- Unit for concealed installation KWC HOMEBOX Thermostatic/ lever mixer 2 consumers 39.006.261.931

Product Specifications

Flow rate
19.2 l/min (3bar)
Spray outlet: Flow rate
15.2 l/min (3bar)

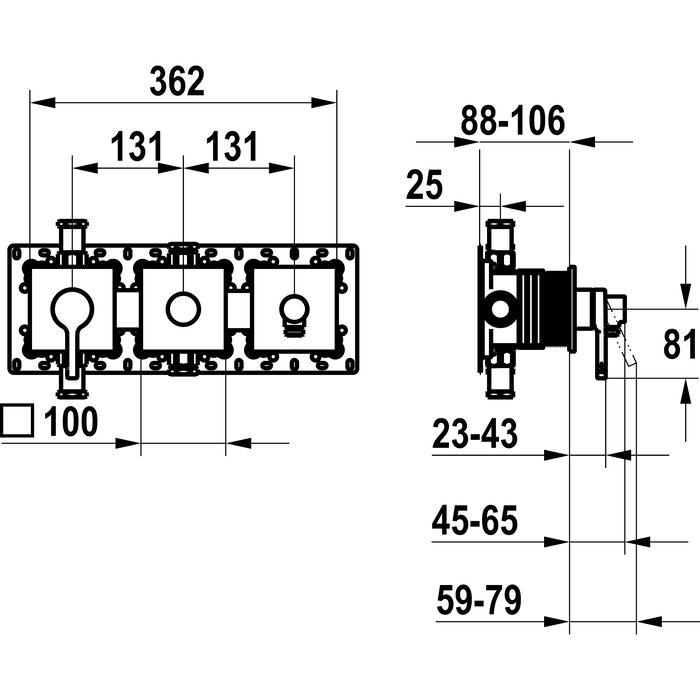

Diameter
362 x 100
Handling
front lever
Color code
chrome
Installation_type
Wall mounted
Faucet_typ
Lever mixer
G_Acoustic group
II
Concealed_unit
Trim kit, with vacuum breaker
G_Acoustic group_Shower_outlet
I
Energy Label
C
material
Brass

Downloads

Technical Documents

With our proven Technologies and functions

Accessories

KWC

Cartridge M 35-S HF

Z.537.602

KWC AVA 2.0 Design and function in playful harmony

More than just an eye-catcher in the kitchen and bath.

View Product Line
