KWC ACTIVO

Trim kit - lever mixer - tub

20.404.550.000

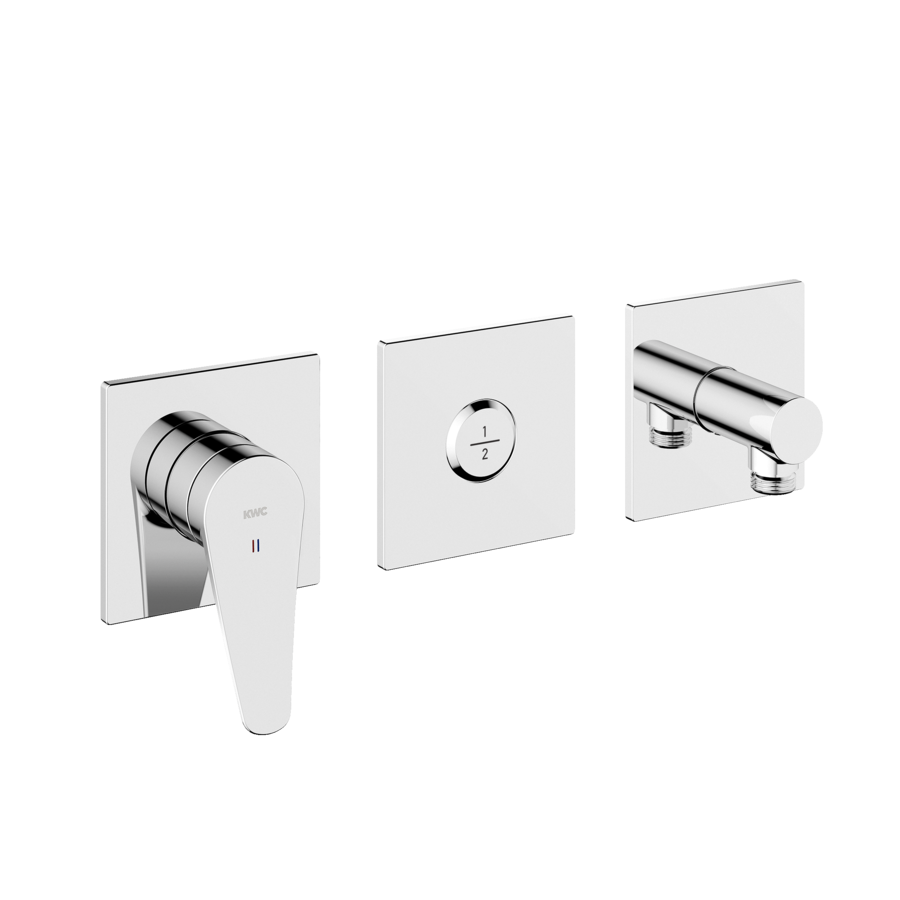

125335 - 20.404.550.000 - ACTIVO - ACTIVO Trim kit - lever mixer - tub

KWC ACTIVO

Trim kit - lever mixer - tub

20.404.550.000 125335 EAN/GTIN: 7612158535179

* Trim kit with function unit KWC HOMEBOX
* Outflow
- With integrated hose connection
- Above or below for the second consumer with CHOICE diverter without automatic reset
* KWC cartridge M 35-S HF
- With ceramic discs
- Flow rate and temperature continuously variable
* Scope of delivery:
- Lever mixer unit
- Diverter unit
- Hose connection unit
- Fastening of the cover plate without screws
* To be ordered separately:
- Unit for concealed installation KWC HOMEBOX Thermostatic/ lever mixer 2 consumers 39.006.261.931

Product Specifications

Handling
front lever
Color_code
chromeline
Installation_type
Wall mounted
Article type
Lever mixer
Concealed_unit
Trim kit, with vacuum breaker
material
Brass

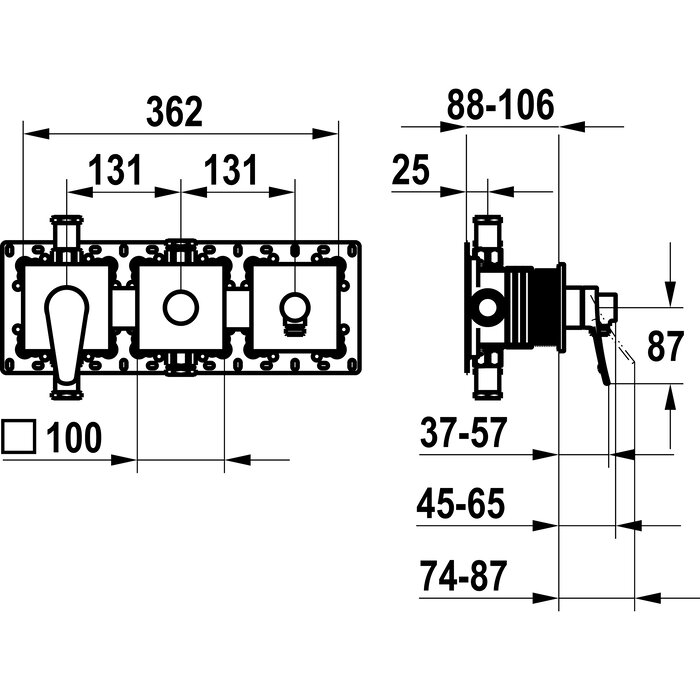

Height maximum
100 mm
Width maximum
362 mm
Acoustic group
II
Energy Label (CH)
C
Flow rate
19.2 Liter/Minute
Spray outlet: Flow rate
15.2 Liter/Minute
Spray outlet: Acoustic group
I

Downloads

Product images

Technical Documents

With our proven Technologies and functions

Accessories

KWC

Control cartridge M 35-S HF

Z.537.602
