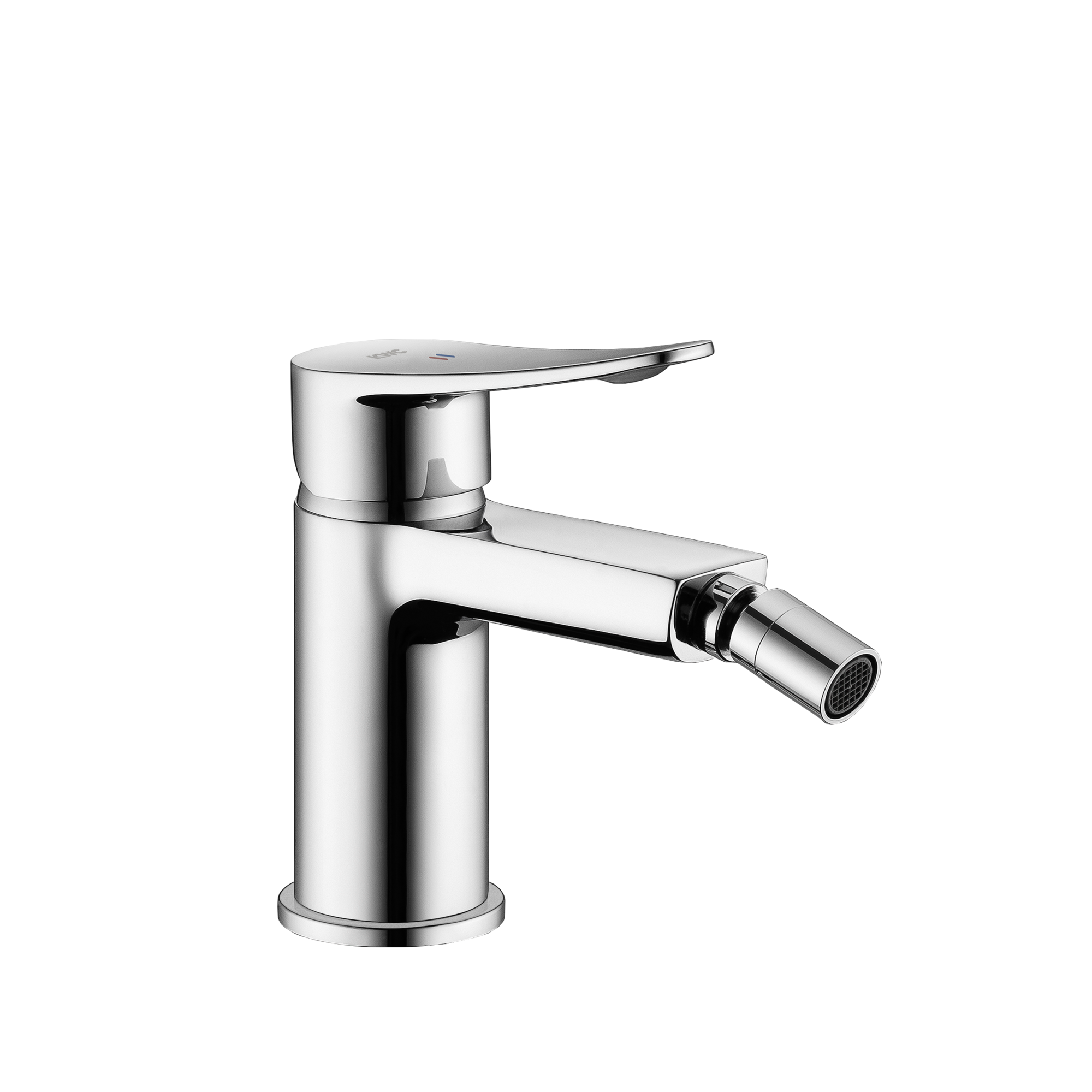

KWC ACTIVO

Lever mixer - Bidet

13.401.042.000FL

124421 - 13.401.042.000FL - ACTIVO - ACTIVO Lever mixer - Bidet

KWC ACTIVO

Lever mixer - Bidet

13.401.042.000FL 124421

* Lever mixer
* ergonomically shaped operating lever
* Fixed spout
- ball joint aerator Neoperl® Perlator®
* KWC cartridge M 35 OP
- with ceramic discs
- flow rate and temperature continuously variable
- temperature limitation
* Flexible connection hoses ⅜"
* Fastening by means of stud bolt M8 x 1
* Mounting hole size ø35 mm

Product Specifications

Flow rate
6 l/min (3 bar)
Pop-up_valve
with pop-up valve
Connection
Flexible connection hoses
Spout
fixed
Handling
top lever
Color code
chrome
Installation_type
Pillar installation
Faucet_typ
Basin1
Dimension Height
127
Acoustic group
Battery1
Projection_A
A 125
Energy Label
B
Dimension Water outlet
78
material
Brass

Downloads

Technical Documents

With our proven Technologies and functions

Accessories

KWC

Cartridge M 35 OP

Z.537.710
