KWC
Pannello doccia SMARTWAVE con miscelatore termostatico

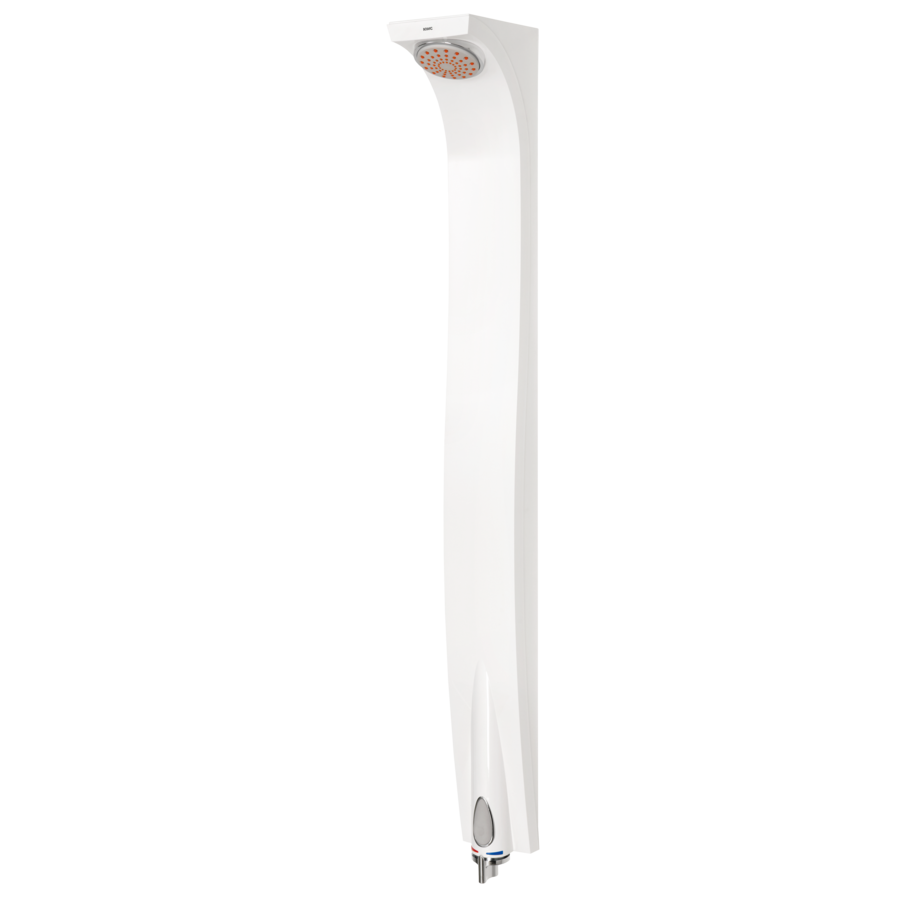

SMARTWAVE shower panel made of Makroblend® with AQUALINE-Therm self-closing thermostatic mixer DN 15 and remote actuation technology, for surface installation. With function block mounted close to the shower head to reduce water stagnation, and device for optional bypass solenoid valve cartridge for performing a thermal disinfection. Shower head with plastic jet face (0.20 l/s) freely adjustable angle from 17 to 27 degrees and enclosed flow controller (0.15 l/s). For connecting to hot and cold water, from behind. Adjustable flow duration. With soft-actuator button, thermostat with integrated over-twist protection, polished chromium-plated full-metal. Housing made of Makroblend® polymer material, colour white (RAL 9016).

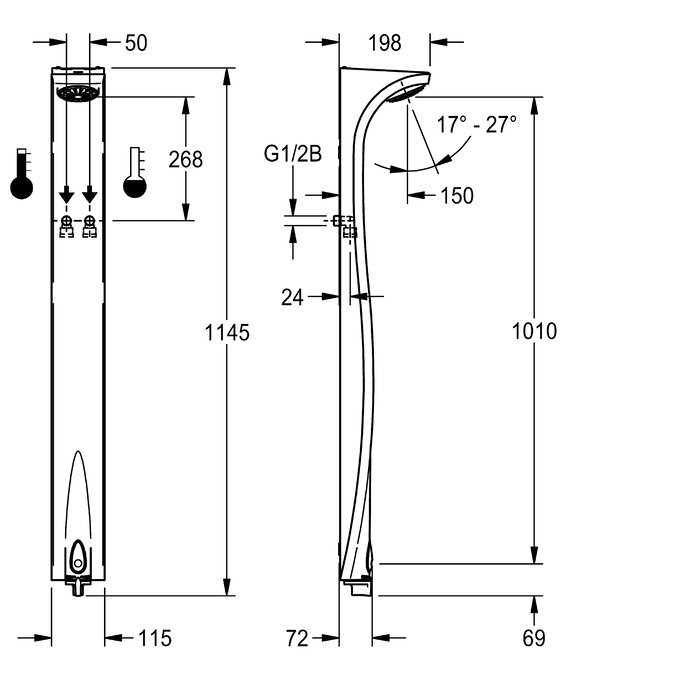

Housing dimensions 115 x 1145 x 198 mm (W x H x D)
Housing dimensions 115 x 1145 x 198 mm (W x H x D)
